EKOMAXX 800
Mobile Intermediate Class
In the EKOMAXX class, the concept of economic sustainability is at the forefront of machine development. ARJES‘ goal is clearly defined: ”Optimum cost-benefit ratio for the maximum benefit of our customers and users“. These are mainly to be found in composting and wood processing companies as well as in the processing of domestic and commercial waste.
5 convincing arguments
- Best price-performance ratio in its class
Including standard attachments (e.g. water sprinkler system, magnet etc.) - Largest range of applications
Processing of many types of material with the toughest requirements - Revolutionary shaft quick-change system
Shortens maintenance times, refurbishment and changing of different shaft types for uninterrupted operation - Hydraulically adjustable tilting hopper*
Higher loading capacity and operability when loading the shredder - Innovative SCU plug-and-play control
Predefined shredding programs that control rotation and speed of shafts for user-friendly operation
*optional available
- Powerful VOLVO PENTA diesel engine for low fuel consumption with highest efficiency
| Technical Data | |
|---|---|
| Engine (Volvo Penta) |
TAD 883 VE (EU) TAD 873 VE (US) TAD 853 VE (ROW)* |
| Emission standard | EU Stufe V (EU) EPA Tier 4f (US) Stufe 3A (ROW)* |
| Power (kW / HP) | 235 / 320 (EU) 235 / 320 (US) 235 / 320 (ROW)* |
| Fuel capacity (l) | 400 |
| Gearbox | Bonfiglioli |
* Rest of the world (country-specific requirements)
Technical changes and errors reserved
- Conveyor belt for efficient material discharge up to 3.600 mm height
| Technical Data | |
|---|---|
| Discharge height (mm) | 3.600 |
| Width (mm) | 1.000 |
| Included | Over-belt magnet and water sprinkler system |
Technical changes and errors reserved
Included!
- Strong permanent magnet for effective ferrous separation
- Large receiving hopper and double shaft system, incl. quick-change cassette
- Optional tilting hopper is available
- Optional use of paddle or concrete shafts according to material requirements
| Technical Data | |
|---|---|
| Hopper volume (m3) | 3,00 / 4,5 (incl. tilting hopper) |
| Shaft length (mm) | 2.000 |
| Shaft diameter (mm) | 680 |
| Weight (kg / cassette) | 2.400 |
| Rotation speed (rpm) | 11 – 35 |
Technical changes and errors reserved
Included!
- Reduction of dust in the filling area and at the discharge belt
- Including remote control and predefined shredding programs that adjust rotation and speed of shafts
Included!
- Guaranteed high maneuverability even on rough terrain
| Technical Data | |
|---|---|
| Version | Track system |
| Length (mm) | 10.000 / 8.400 (Transport) |
| Width (mm) | 2.450 / 2.450 (Transport) |
| Height (mm) | 4.200 / 2.800 (Transport) |
| Total weight (kg) | 21.000 |
Technical changes and errors reserved
Highlights in detail
Manually insertable Waveform plates
By pushing in or pulling out the gap, the final width and final grain size can be adjusted. In case of wear, the plates are turned several times and reinstalled.
Quick change system for shafts
Simplified process that requires little time for installation and removal of shafts, facilitating maintenance, renewal and replacement of shredding shafts and providing uninterrupted operation.

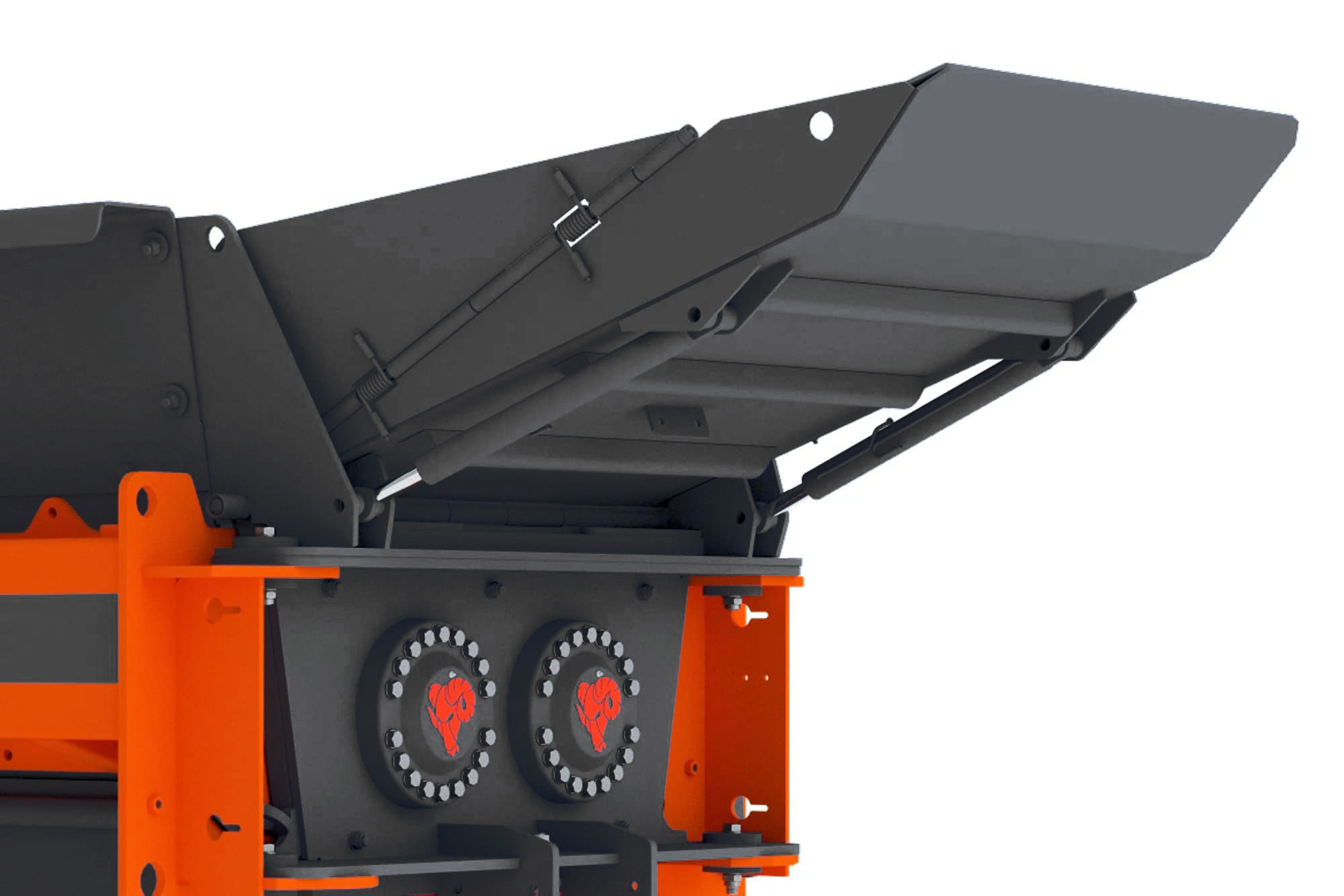

Hydraulically adjustable tilting hopper
Loads with a wheel loader; shovel width of up to 3.60 m (10 ft): The shredding unit can be equipped with a 180° adjustable tilting hopper.
Fields of application

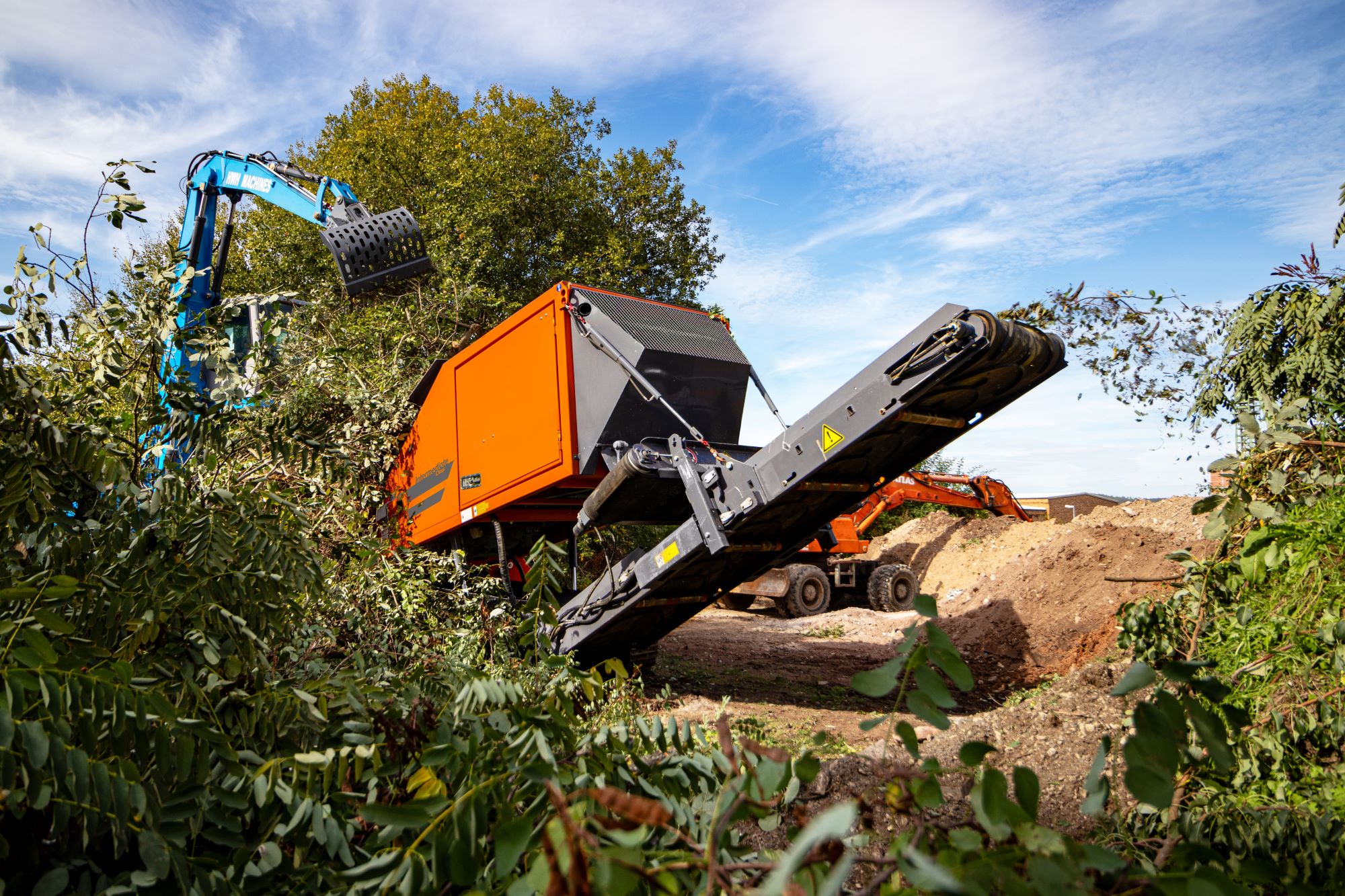

Biomass & Green Waste
For the effective use of organic solid resources in bio-power plants by processing green waste and tree branches. Read more
Stem Wood & Roots
The massive material of stem wood, root stocks and logging residue is broken up first by our aggressive ripper hooks. Read more
Waste Wood
Processing waste wood of categories A1 to A4 like demolition wood, cable drums and pallets for material or thermal recycling. Read more

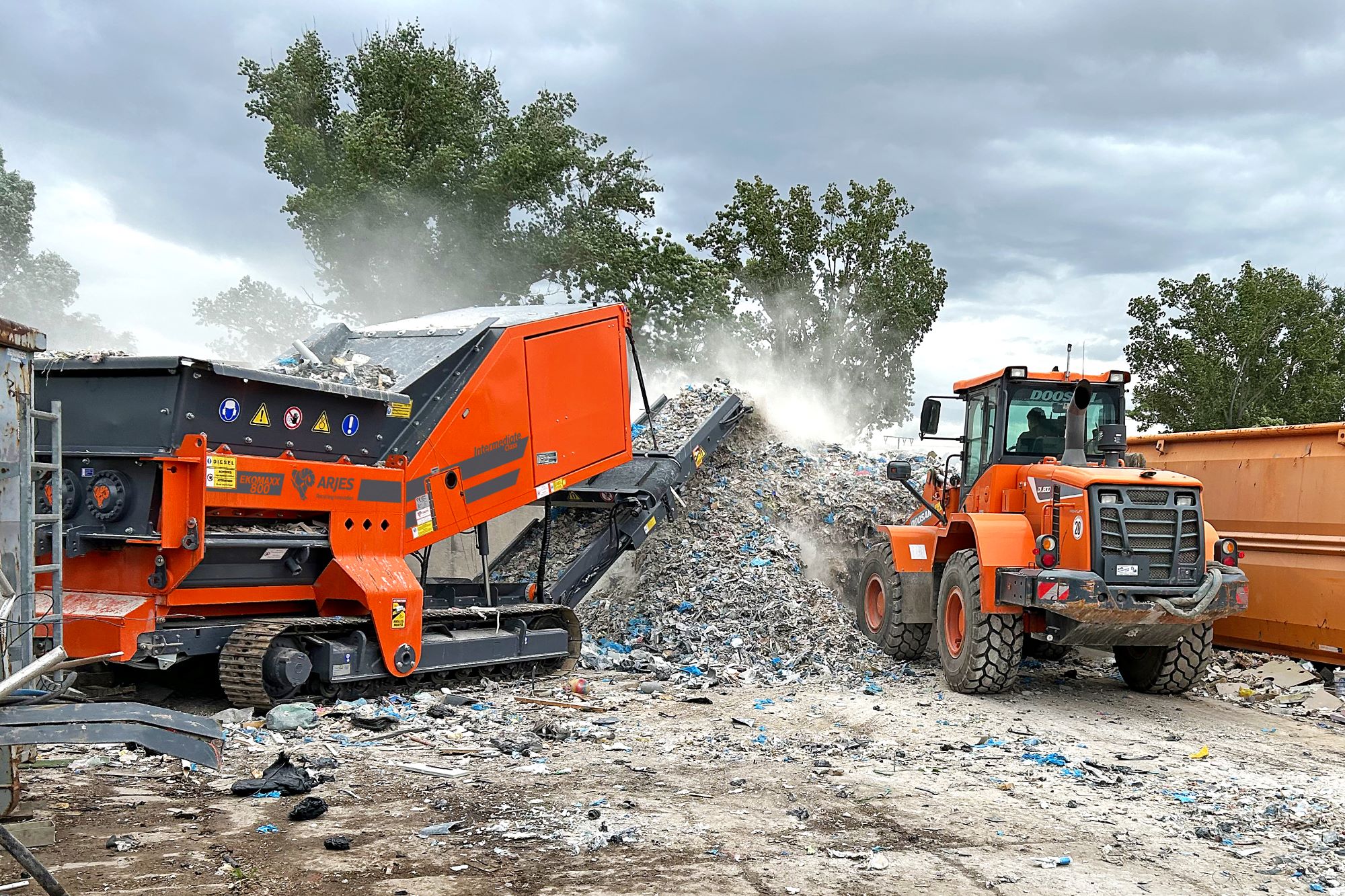

Waste & Plastics
Shredding domestic and industrial waste saves landfill space and enables sorting and separating of valuable ressources. Read more
