TITAN 900
Mobile heavy-duty class
The TITAN class is all about the heaviest chunks and the most demanding applications. Where many throw in the towel, we take on the challenge and seek to satisfy with a competitively superior range of applications. Especially companies that have to process a huge amount of waste products on a daily basis find themselves at home within this price range.
5 convincing arguments
- Best price-performance ratio in its class
Including standard attachments (e.g. overbelt magnet) - Largest range of applications
Processing of many types of material with the toughest requirements - Revolutionary shaft quick-change system
Shortens maintenance times, refurbishment and changing different shaft types for uninterrupted operation - Maximum mobility in every situation
track system as standard and cost effective transport - Innovative SCU plug-and-play control
Predefined shredding programs that control rotation and speed of shafts for user-friendly operability
- Powerful VOLVO PENTA diesel engine for the maximum efficency during the shredding proccess
| Technical Data | |
|---|---|
| Engine (Volvo Penta) |
TAD1385VE (EU) TAD1672VE (US) TAD 1650 VE-B (ROW)* |
| Emission standard | EU Stage V (EU) EPA Tier 4f (US) Stage IIIA (ROW)* |
| Power (kW/HP) | 405/550 (EU) 515/700 (US) 405/550 (ROW)* |
| Fuel capacity (l) | 800 |
| Gearbox | Bonfiglioli |
* Rest of the world (country-specific requirements)
Technical changes and errors reserved
Included!
- Self cleaning CLEANFIX fan for ideal air circulation and dirt reduction in the engine compartment
- Conveyor belt for efficient material discharge up to a height of 4,000 mm
| Technical Data | |
|---|---|
| Discharge height (mm) | max 4,000 |
| Width (mm) | 1.200 |
| Included | height adjustable over-belt magnet |
Technical changes and errors reserved
Included!
- Height-adjustable permanent magnet for effective Fe-separation
- Large-volume hopper and double shaft system with quick-change cassette
- Optional use of concrete or paddle shafts according to material requirements
| Technical Data | |
|---|---|
| Hopper volume (m³) | 5 |
| Shaft length (mm) | 2.500 |
| Shaft diameter (mm) | 860 |
| Weight (kg/cassette) | 6.700 |
| Rotation speed (rpm) | 15 – 45 |
Technical changes and errors reserved
- Including remote control and predefined shredding programs that adjust rotation and speed of shafts
Included!

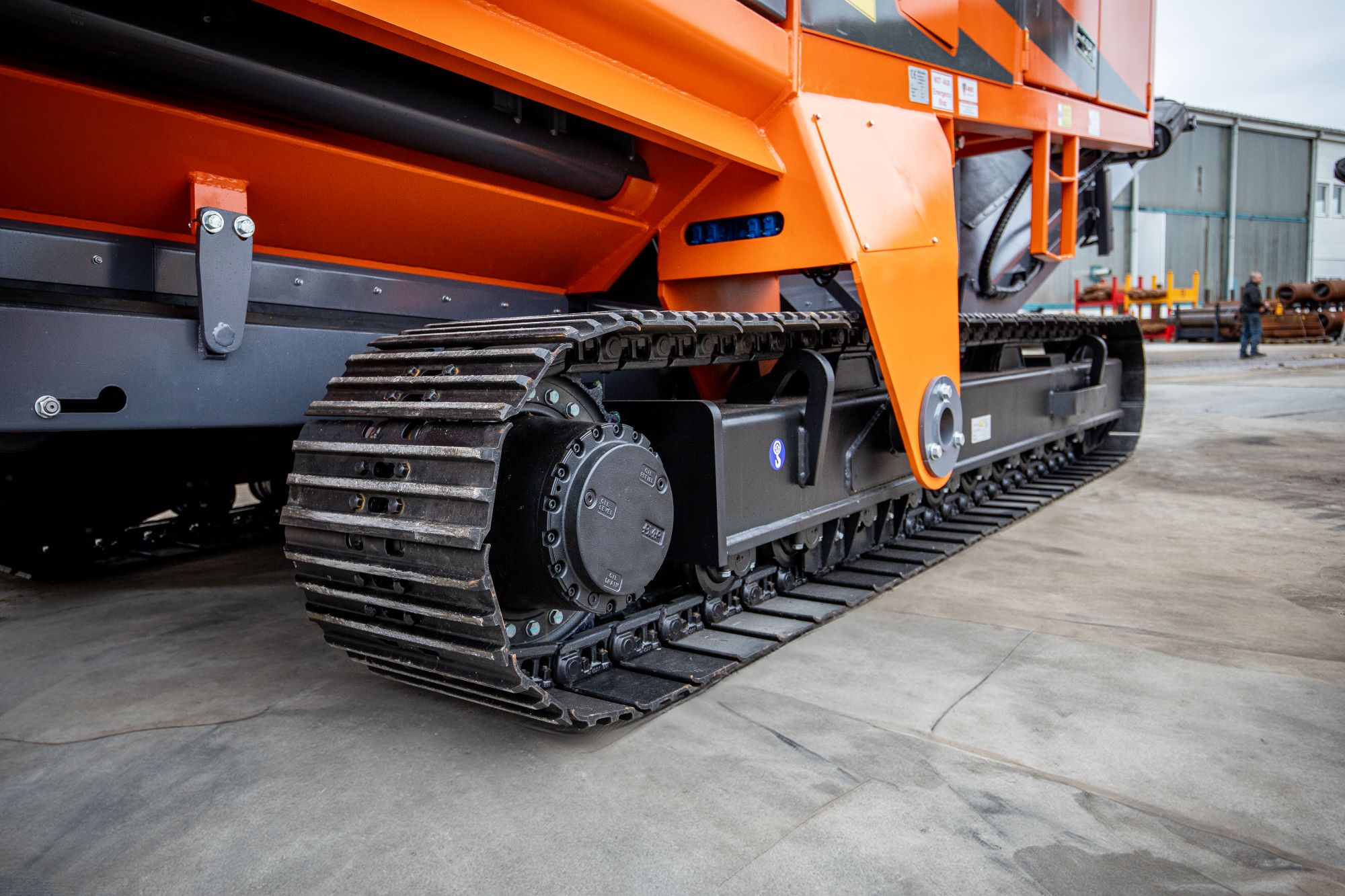

- Guaranteed high mobility on uneven surfaces
- Optional rubber elements to avoid ground damage
| Technical Data | |
|---|---|
| Version | Track system |
| Length (mm) | 11.000 / 11.000 (Transport) |
| Width (mm) | 3.000 / 3.000 (Transport) |
| Height (mm) | 4.200 / 3.700 (Transport) |
| Total weight (kg) | 35.000 |
Technical changes and errors reserved
Highlights in detail

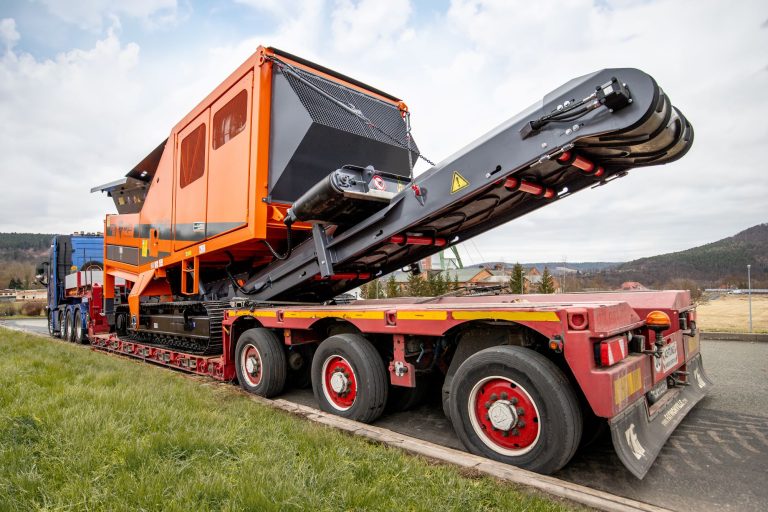

Easy maneuvering and transportability
The standardised track system provides optimal mobility at the operational site and makes transportation on a low-bed truck even more affordable and efficient.
Quick change system for shafts
Easy installation and quick removal of shafts, for easier maintenance, refurbishment and changing of shaft type, which increases more productivity.

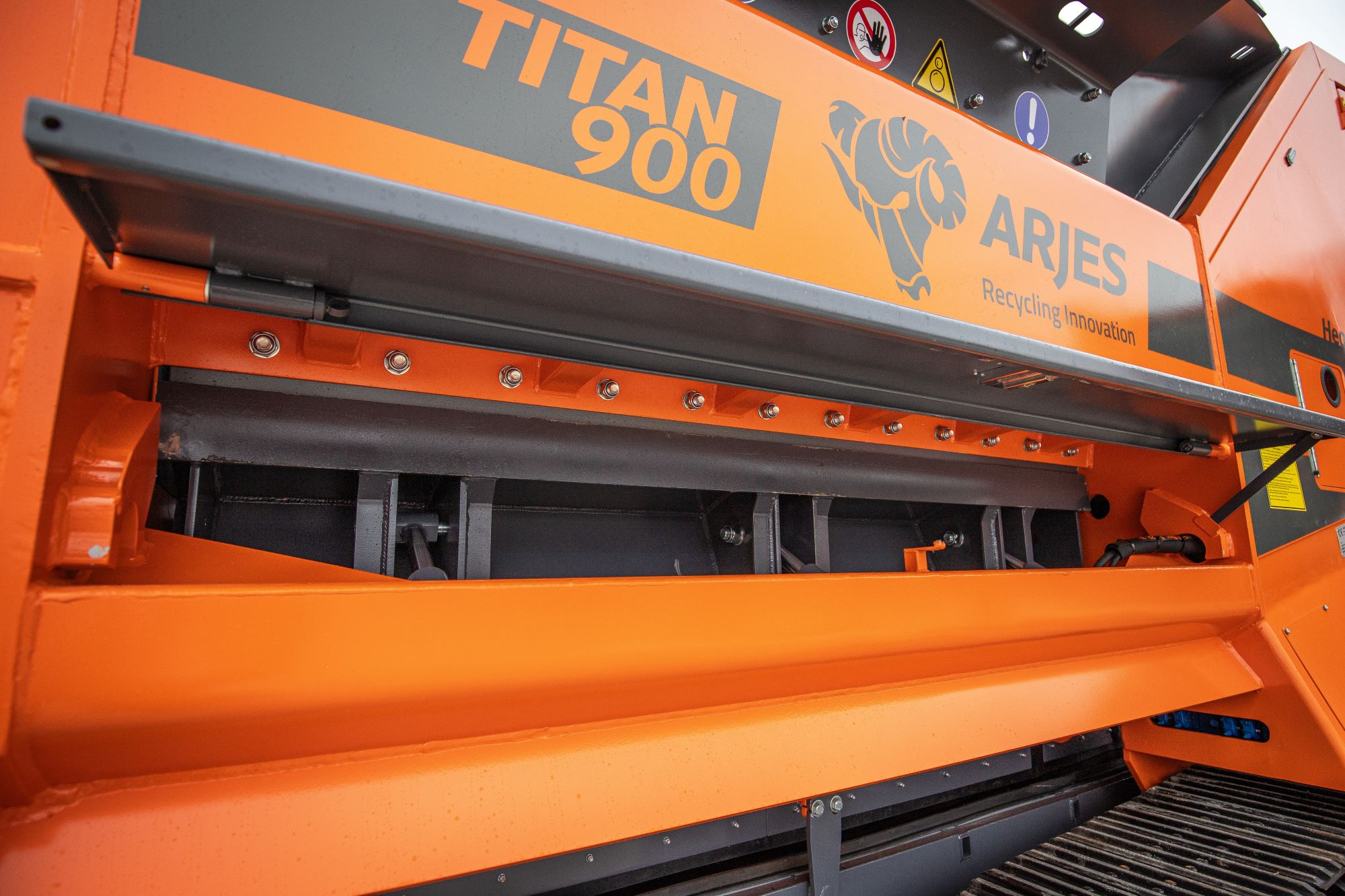

Hydraulic adjustable side combs
The side combs can be opened or closed to regulate the final grain size. This allows the throughput to be defined depending on the material and the customer‘s requirements.
Fields of application
Biomass & Green Waste
For the effective use of organic solid resources in bio-power plants by processing green waste and tree branches. Read more
Stem Wood & Roots
The massive material of stem wood, root stocks and logging residue is broken up first by our aggressive ripper hooks. Read more
Waste Wood
Processing waste wood of categories A1 to A4 like demolition wood, cable drums and pallets for material or thermal recycling. Read more

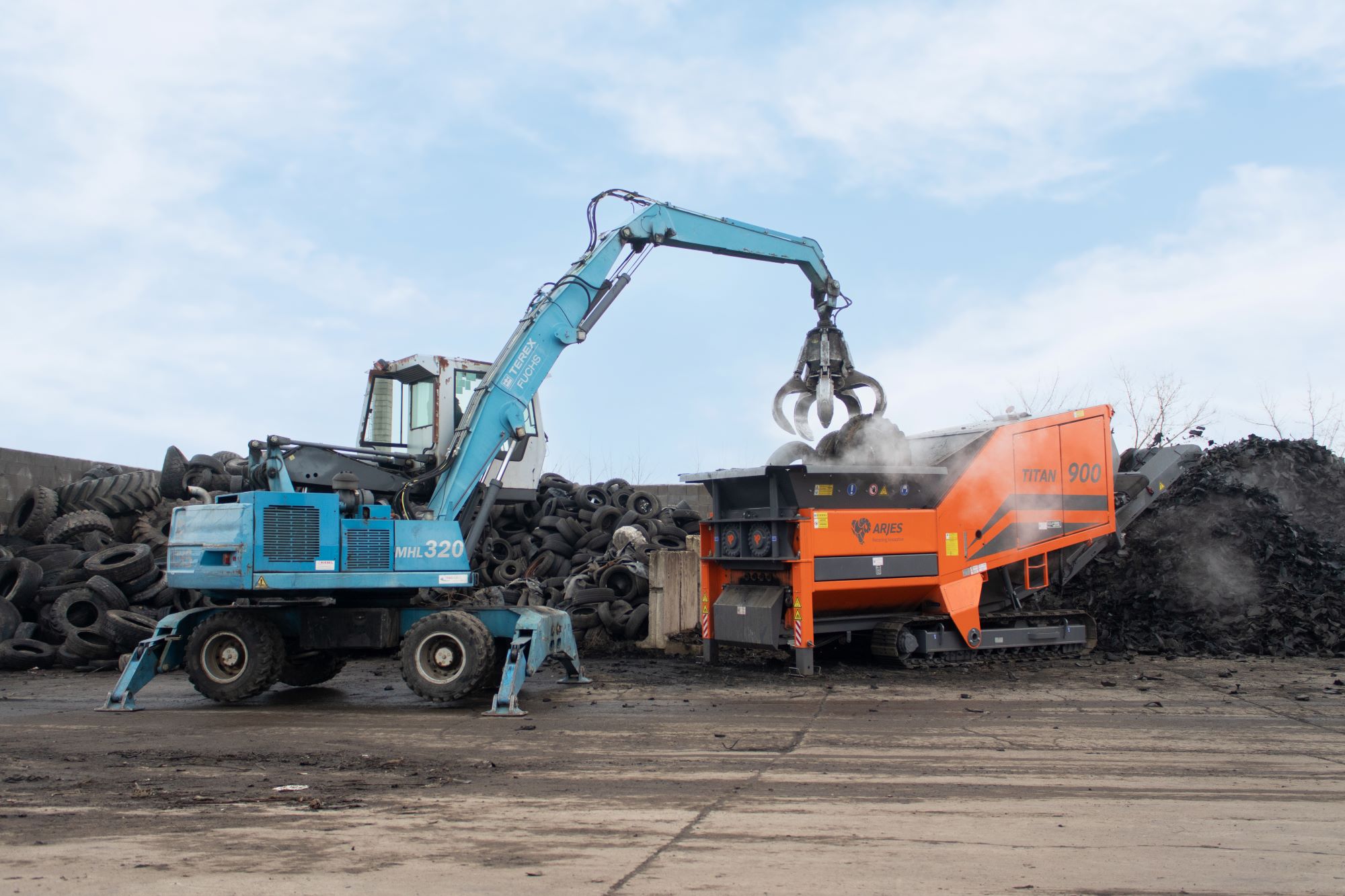

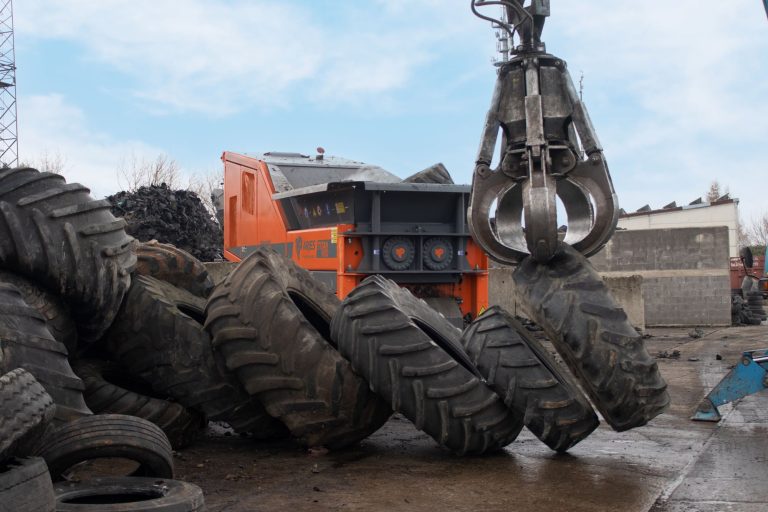

Waste & Plastics
Shredding domestic and industrial waste saves landfill space and enables sorting and separating of valuable ressources. Read more
C&D Debris & Mineral Waste
At construction sites debris like concrete, asphalt, tiles, etc. need to be reduced in volume to be processed and disposed. Read more
