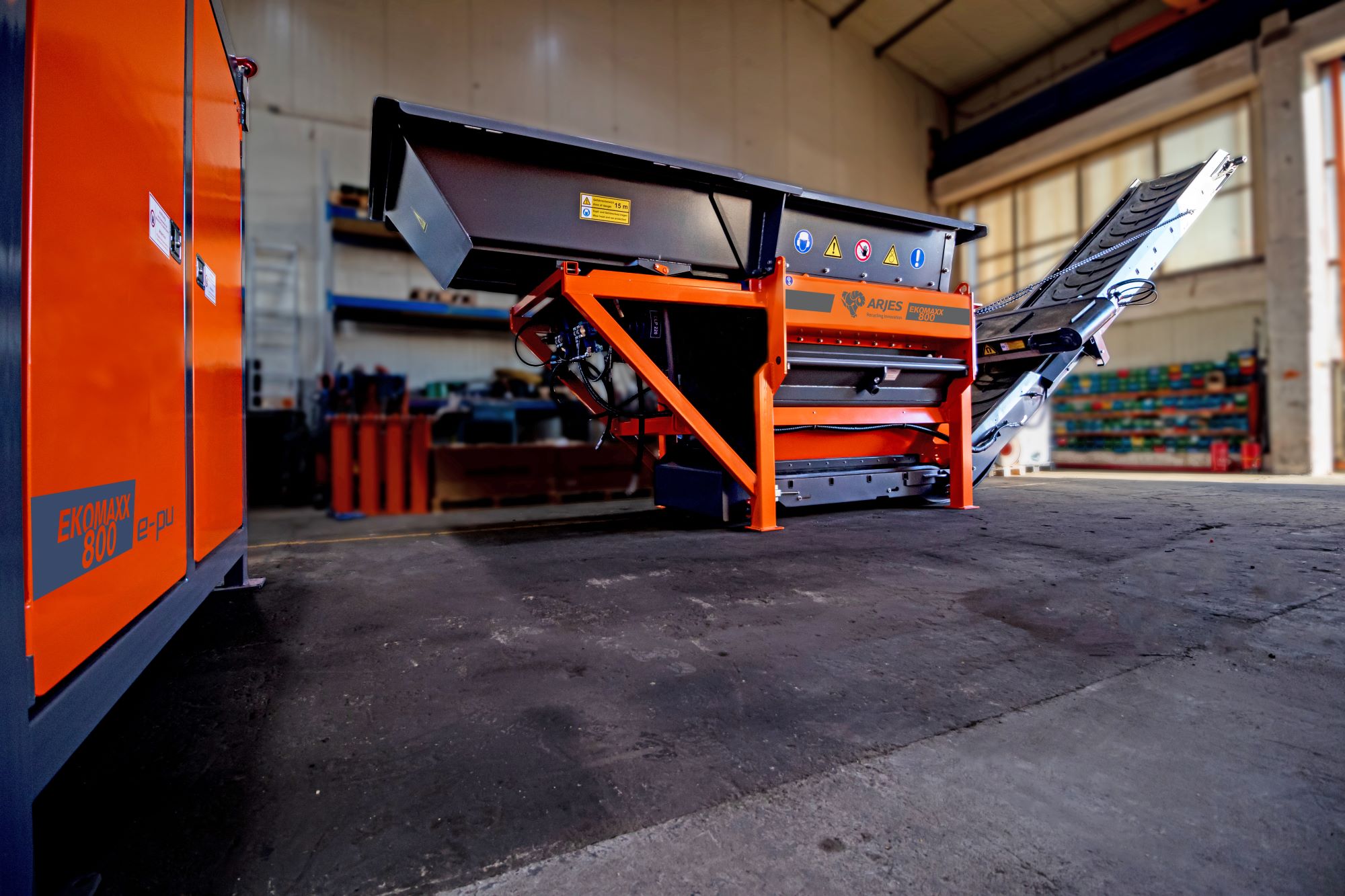

EKOMAXX 800 e-pu
Stationary Intermediate Class
For all customers with special requirements regarding exhaust and noise emissions, the stationary electric version of the EKOMAXX class is the right solution. Our Electric-Power-Unit machines are particularly energy-saving and efficient for the user, as they can be used for shredding the most difficult materials with significantly less maintenance.
5 convincing arguments
- Best price-performance ratio in its class
Extended assembly of discharge belt and over belt magnet possible according to customer needs - Largest range of applications
Processing of different types of material with the toughest requirements - Revolutionary shaft quick-change system
Shortens maintenance times, refurbishment and changing of different shaft types for uninterrupted operation - Integration in complete plants or usable as an invidual machine
Flexible uses possible due to separate machine components - Universal operability
Direct operation via remote control and optional integration into complete systems possible
- Powerful electric engine performs with high efficiency and low energy costs
| Technical Data | |
|---|---|
| Engine | Electric |
| Power (kW) | 250 |
| Gearbox | Bonfiglioli |
Technical changes and errors reserved
Optional!

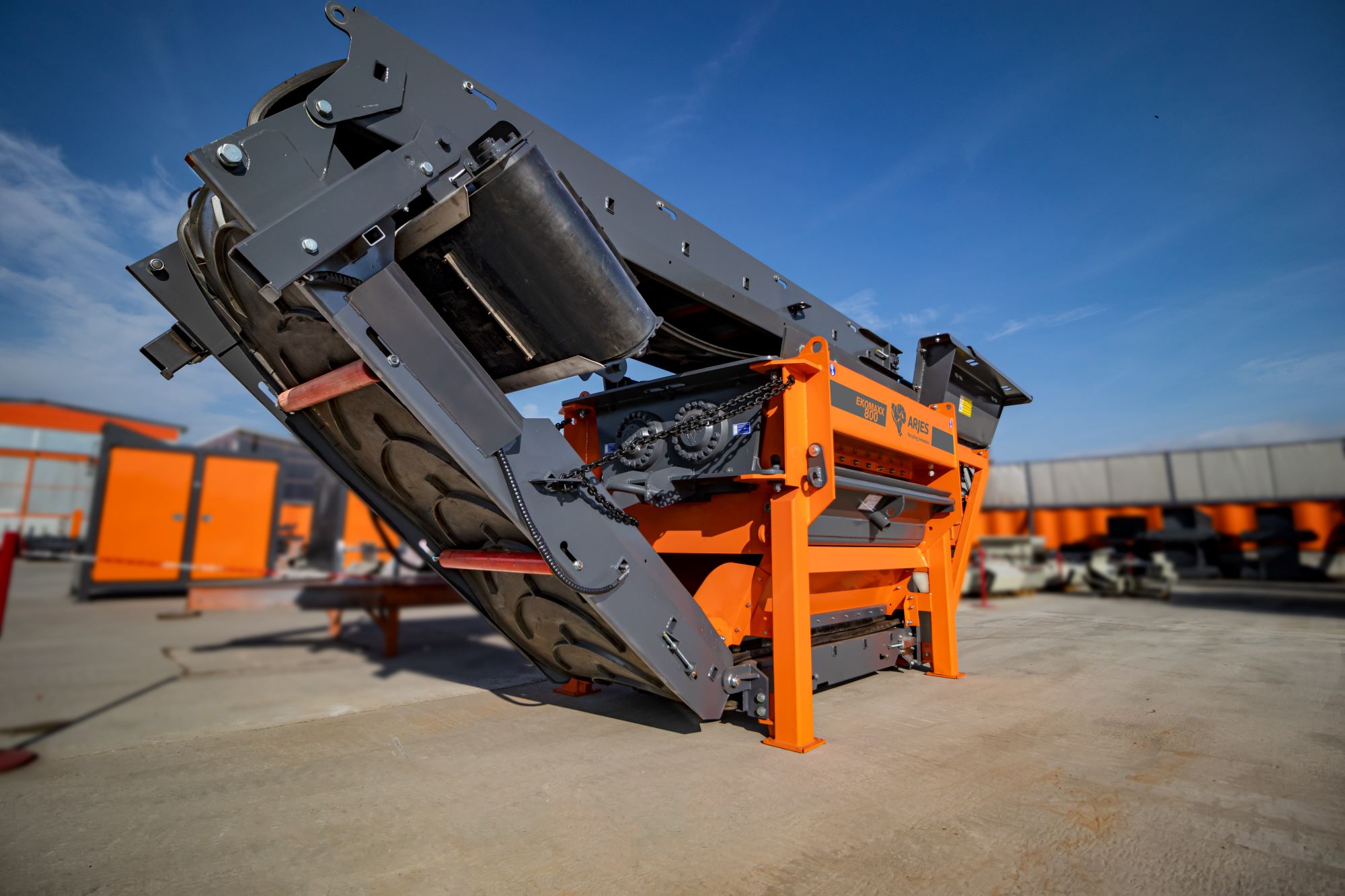

- Conveyor belt for efficient material discharge according to customer requirements
Optional!
- Height-adjustable permanent magnet for effective Fe-separation

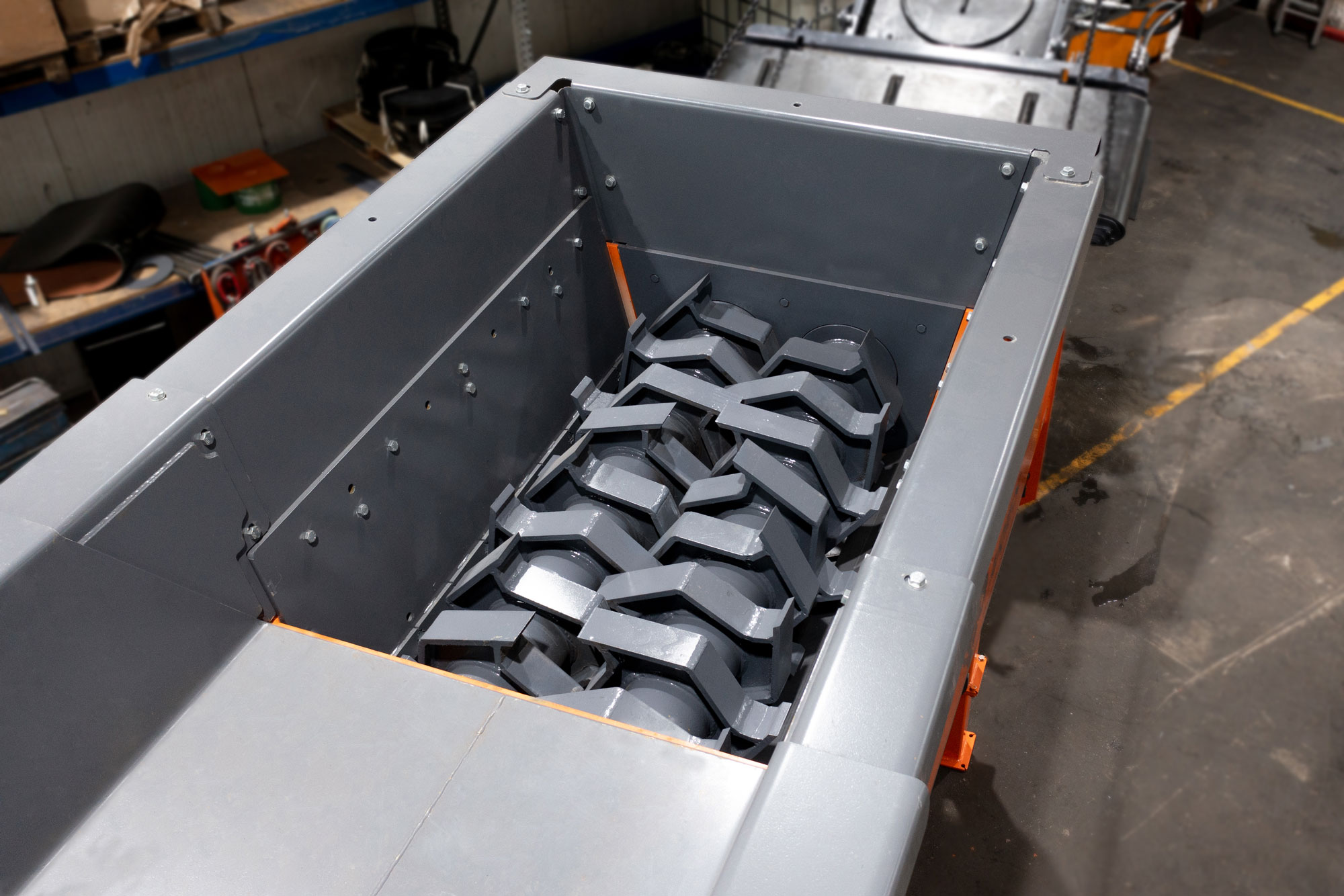

- Large-volume hopper and double shaft system with quick-change cassette
| Technical Data | |
|---|---|
| Hopper volume (m³) | 3,00 |
| Shaft length (mm) | 2.000 |
| Shaft diameter (mm) | 680 |
| Weight (kg / cassette) | 2.400 |
| Rotation speed (rpm) | 30 – 45 |
Technical changes and errors reserved
- Operation via remote control
- Optional integration into complete systems according to customer requirements
- Used as an invidual machine
- Optional integration in recycling plants according to customer needs
| Technical Data | ||
|---|---|---|
| Version | Stationary | |
| Shredding Unit | ||
| Length (mm) | 3.500 | |
| Width (mm) | 2.200 | |
| Height (mm) | 3.200 | |
| Control Unit | ||
| Length (mm) | 2.600 | |
| Width (mm) | 1.600 | |
| Height (mm) | 2.700 | |
| Total weight (kg) | approx 17.000 | |
Technical changes and errors reserved
Highlights in detail

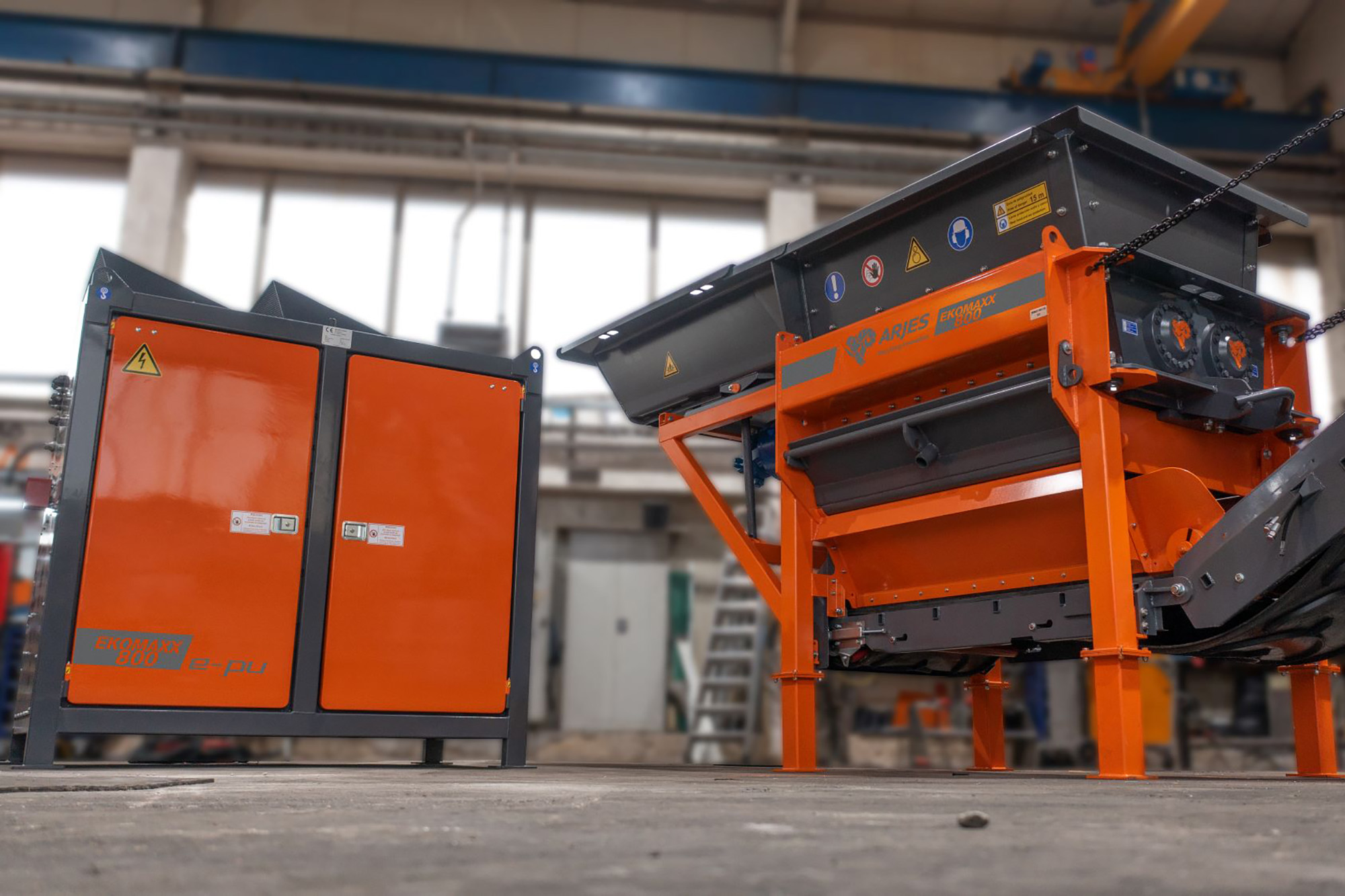

Separate drive and control unit
Due to separate placement of the shredding and control unit (max 8 meters in between) there is significant less vibration to the control system. Additionally, dust and dirt are reduced.
Quick change system for shafts
Easy installation and quick removal of shafts, for easier maintenance, refurbishment and changing of shaft type, which increases productivity.
Manually insertable Waveform plates
By pushing in or pulling out the gap, the final width and final grain size can be adjusted. In case of wear, the plates are turned several times and reinstalled.
Fields of application
Biomass & Green Waste
For the effective use of organic solid resources in bio-power plants by processing green waste and tree branches. Read more
Stem Wood & Roots
The massive material of stem wood, root stocks and logging residue is broken up first by our aggressive ripper hooks. Read more
Waste Wood
Processing waste wood of categories A1 to A4 like demolition wood, cable drums and pallets for material or thermal recycling. Read more
Waste & Plastics
Shredding domestic and industrial waste saves landfill space and enables sorting and separating of valuable ressources. Read more
