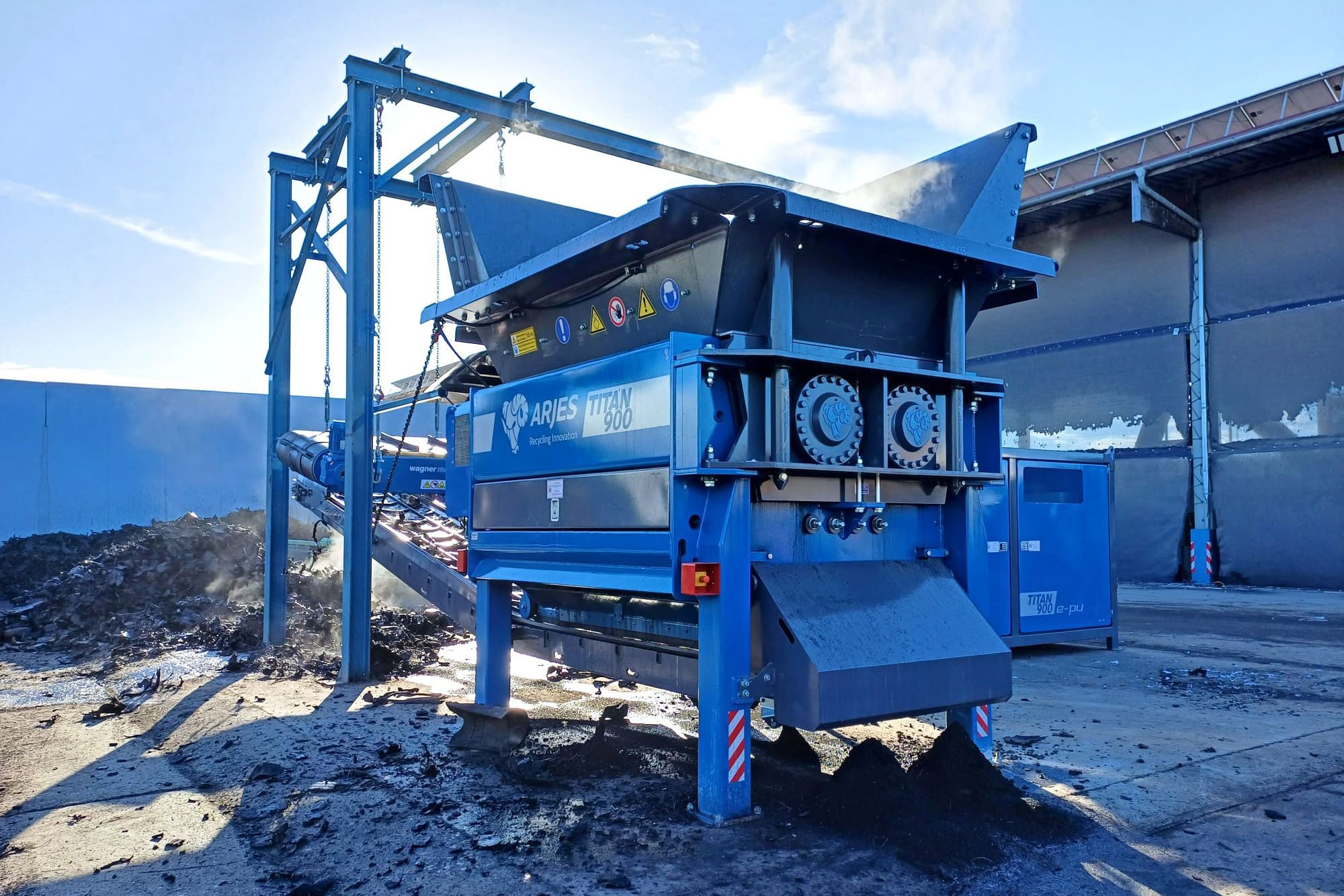

TITAN 900 e-pu / d-pu

Stationary heavy-duty class

Alternatively, the ARJES heavy-duty class also offers the possibility of using a stationary electric or diesel version, in which the twin-shaft shredders convinces with maximum efficiency. The system is divided into a drive and control unit and can be integrated into existing recycling plants or used as a stand-alone machine.

5 convincing arguments

  • Best price-performance ratio in its class
    Extended assembly of discharge belt and over belt magnet possible according to customer needs
  • Largest range of applications
    Processing of many types of material with the toughest requirements
  • Revolutionary shaft quick-change system
    Shortens maintenance times, refurbishment and changing different shaft types for uninterrupted operation
  • Highest efficiency
    For the most difficult materials with the lowest energy costs
  • Universal operability
    Direct operation via remote control and optional integration into complete systems possible
  • Two powerful electric engines or one diesel engine for off-grid operations
Technicala Data
Engine Electric
Diesel
Power (kW) 2 x 160 (Electric)
405 (Diesel)
Gearbox Bonfiglioli

Technical changes and errors reserved

Optional!

  • Conveyor belt for efficient material discharge according to customer requirements

Optional!

  • Height-adjustable permanent magnet for effective Fe separation
  • Large-volume hopper and double shaft system with quick-change cassette
  • Optional use of concrete or paddle shafts according to material requirements
Technical Data
Hopper volume (m³) 5
Shaft length (mm) 2.500
Shaft diameter (mm) 860
Weight (kg/cassette) 6.700
Rotation speed (rpm) 15 – 45

Technical changes and errors reserved

  • Operation via remote control
  • Optional integration into complete systems possible according to customer requirements
  • Use as stand-alone machine
  • Optional integration into recycling plants according to customer requirements
Technical Data
Version Stationary
Shredding Unit
Length (mm) 4.700
Width (mm) 3.000
Height (mm) 3.100
Control Unit
Length (mm) 3.500
Width (mm) 2.300
Height (mm) 2.300
Total weight (kg) approx. 22.000

Technical changes and errors reserved

Send request!

Highlights in detail

Seperate drive and control unit

Due to distance placement of the shredding and control unit (max 8 meters in between) there is significant less vibration to the control system. Additionally, dust and dirt are reduced.

Quick change system for shafts

Easy installation and quick removal of shafts, for easier maintenance, refurbishment and changing of shaft type, which increases more productivity.

Hydraulically adjustable side combs

The side combs can be opened or closed to regulate the final grain size. This allows the throughput to be defined depending on the material and the customer‘s requirements.

Fields of application

Biomass & Green Waste

For the effective use of organic solid resources in bio-power plants by processing green waste and tree branches. Read more

Stem Wood & Roots

The massive material of stem wood, root stocks and logging residue is broken up first by our aggressive ripper hooks. Read more

Waste Wood

Processing waste wood of categories A1 to A4 like demolition wood, cable drums and pallets for material or thermal recycling. Read more

Waste & Plastics

Shredding domestic and industrial waste saves landfill space and enables sorting and separating of valuable ressources. Read more

C&D Debris & Mineral Waste

At construction sites debris like concrete, asphalt, tiles, etc. need to be reduced in volume to be processed and disposed. Read more
