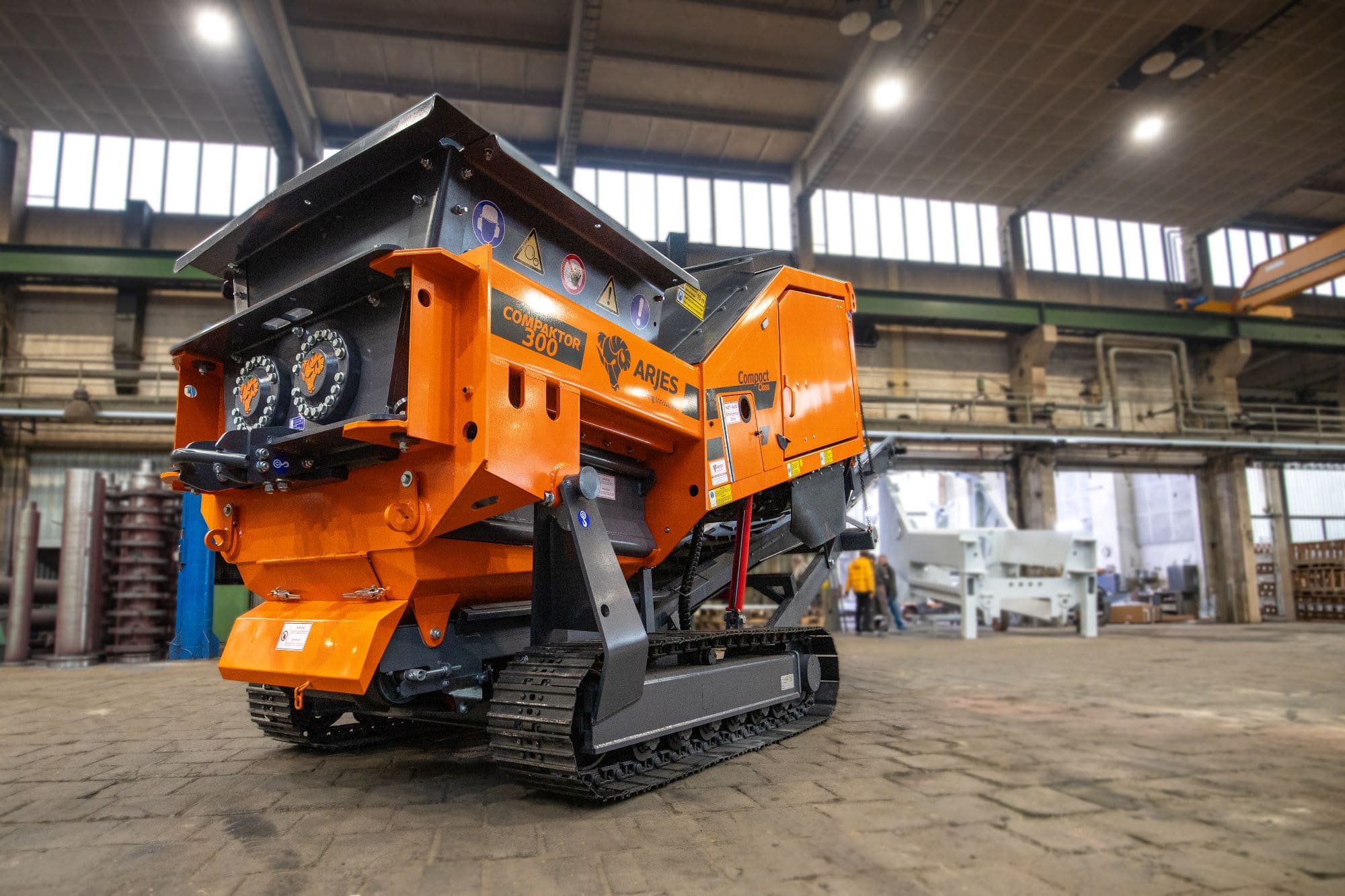

COMPAKTOR 300

Mobile compact class

Upholding the motto ”never change a running system“, for the mobile compact class we are offering proven ARJES technology with a field-tested and competitive design. The COMPAKTOR 300 has a new name, but when it comes to its structure, it is not a blank sheet on the global recycling market. Especially disposal companies of the construction and demolition sector value the ARJES brand for their extremely flexible and strong shredder that comes along with the best price-performance ratio of the industry. Also operators who want to expand their range of products for a mobile shredder, will find the best solution in this field.

5 convincing arguments

  • Best price-performance ratio in its class
    incl. standard attachments (e.g. reversing fan, magnet etc.)
  • Largest range of applications
    Processing of many types of material with the thoughest requirements
  • Revolutionary shaft quick-change system
    Shortens maintenance times, refurbishment and changing different shaft types for uninterrupted operation
  • Innovative SCU plug-and-play control
    Predefined shredding programs that control rotation and speed of shafts for user-friendly operability
  • Maximum mobility in every situation
    Track system and hooklift / multilift included as standard

Powerful VOLVO PENTA 5 litre diesel engine for low fuel consumption and maximum efficiency

Technical Data
Engine
(Volvo Penta)
TAD582VE (EU/US)
TAD551VE (ROW)*
Emission standard Stage V (EU)
EPA Tier IV (US)
Stage III A (ROW)*
Power (kW/PS) 160/220
Fuel capacity (l) 330
Gearbox Bonfiglioli

* rest of the world (country specific requirements)
Technical changes and errors reserved

Included!

Efficient engine cooling and cleaning for a significantly longer lifetime

Conveyor belt for efficient material discharge up to 3,100 mm height

Technical Data
Discharge height (mm) 3,100
Width (mm) 800
Included Overbelt magnet and water sprinkler system

Technical changes and errors reserved

Included!

Strong permanent magnet for effective Fe separation

Large-volume hopper with proven two-shaft system including reinforced quick change cassette

Technical Data
Hopper volume (m³) 2.25
Shaft length (mm) 1,500
Shaft diameter (mm) 680
Weight (kg/cassette) 3,100
Rotation speed (rpm) 38

Technical changes and errors reserved

Included!

Connection to reduce dust generation when the shredded material is discharged

Including remote control and predefined shredding programs that adjust rotation and speed of shafts

Included!

Guarantees optimum mobility on every surface; rubber tracked crawler systems optionally available

Technical Data
Version Crawler track system and hook lift
Length (mm) 7,800 / 7,200 (transport)
Width (mm) 2,300 / 2,300 (transport)
Height (mm) 3,700 / 2,600 (transport)
Total weight (kg) 15,000

Technical changes and errors reserved

from € 179,000*

Send Request!

*Recommended retail price FCA plus applicable VAT and additional costs (transport, insurance, customs, etc.)

Highlights in detail

Mechanically adjustable side combs

The side combs can be opened or closed, depending on material and customer requirements; decreasing the output size or increasing the throughput rate.

Quick change system for tool shafts

Simplify maintenance, reprocessing and type change of your shredding shafts with an effortless mounting and dismounting of the pair of shafts in record time.

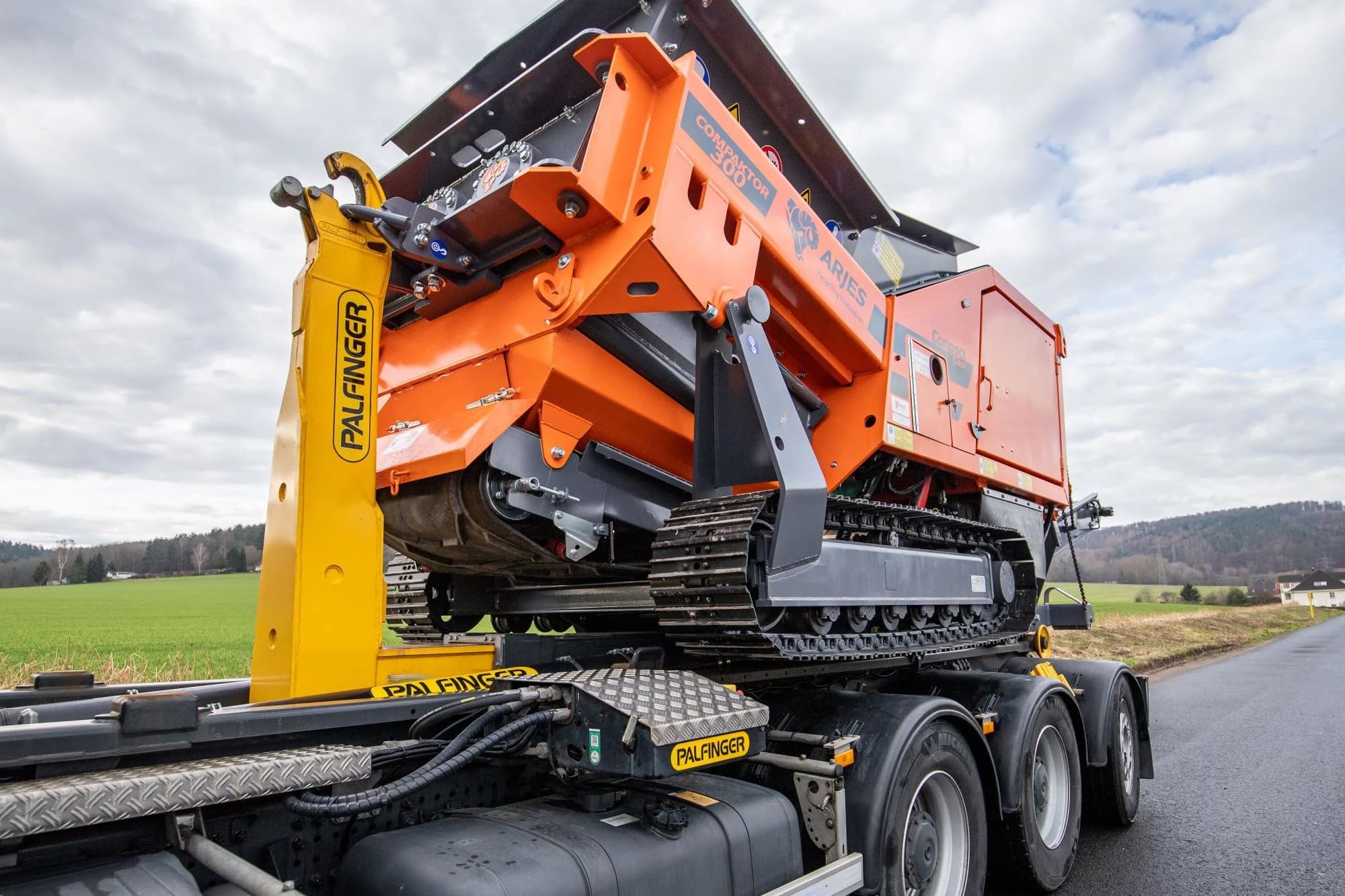

Easy transport to any place of work

Due to the low empty weight and the hydraulically lowerable chassis, transport with hook lift attachment is possible without any problems.

Fields of application

Waste Wood & Biomass

Waste wood is a versatile raw material that is worldwide used thermally, and for the production of material. It is waste and biomass at the same time.
Find out more here

Household & Commercial Waste

Whether our private or commercial waste ends up as substitute fuel in the waste incinerator or can be recycled, it must first be shredded.
Find out more here

Construction & Demolition Waste

Construction and demolition waste is processed for the extraction of secondary raw materials. Our shredders create the basis for these recycled materials.
Find out more here
